Patio Pack Details
Patio Pack Type A

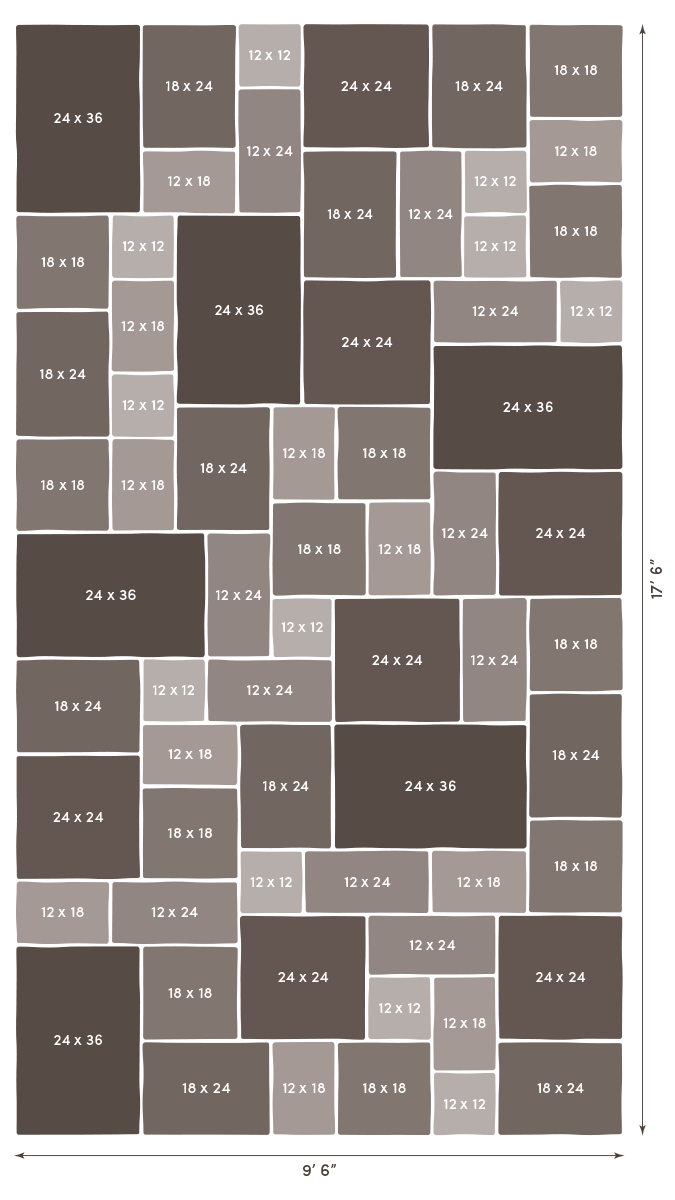

Type A Patio Packs are typically installed in a "random" fashion in which there is no repeating pattern. A layout is shown that uses all the pieces in a standard patio pack. This layout can be expanded or modified to fit any application, or you can create an entirely new layout for your project.
Type A Patio Packs cover a total area of 166.25 square feet.
Packaging Details
| Size | Quantity | Square Feet |
|---|---|---|
| 12" x 12" | 11 | 11 |
| 12" x 18" | 11 | 16.5 |
| 12" x 24" | 10 | 20 |
| 18" x 18" | 11 | 24.75 |
| 18" x 24" | 10 | 30 |
| 24" x 24" | 7 | 28 |
| 24" x 36" | 6 | 36 |
Total Area: 166.25 Square Feet |
||
Patio Pack Type B

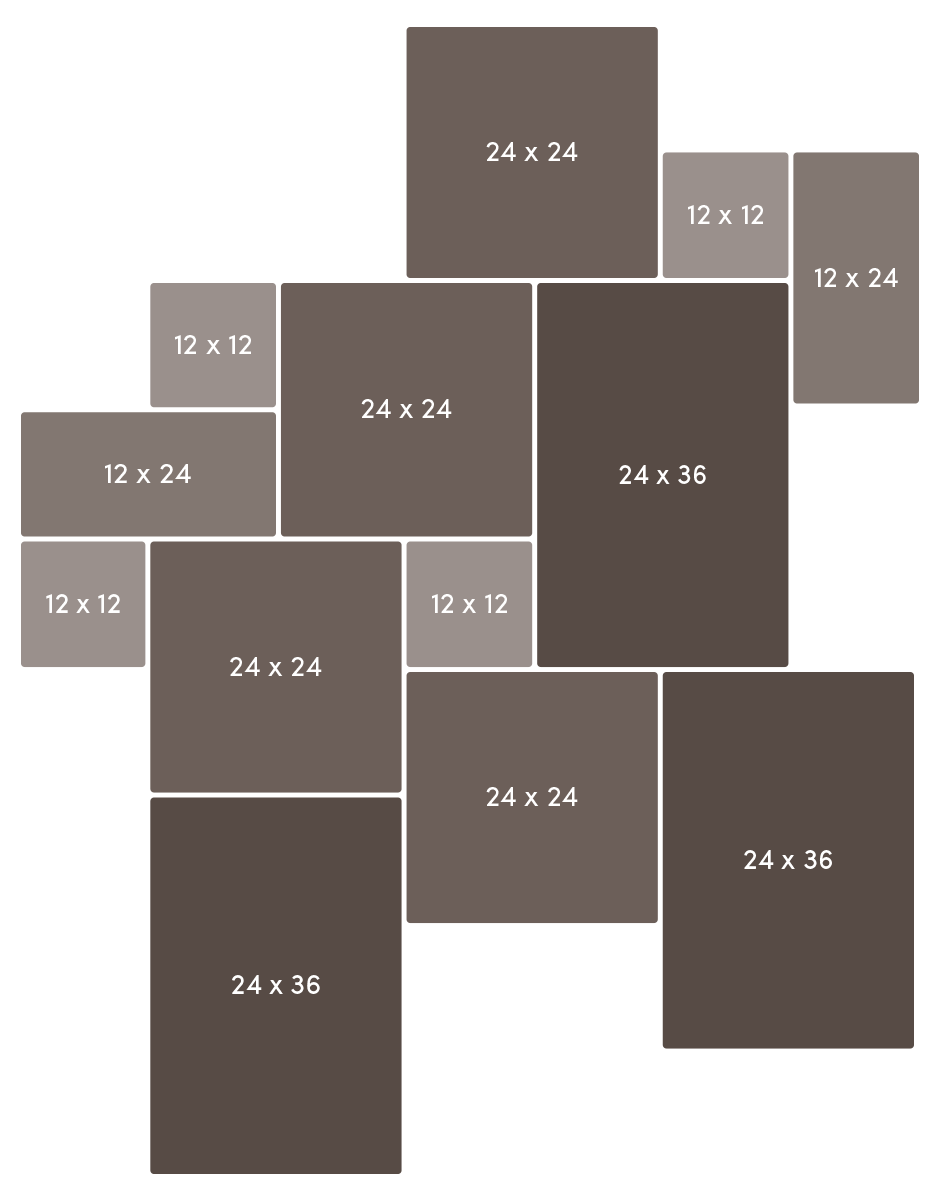

Type B Patio Packs can be installed in a "random" fashion in which there is no repeating pattern, or they can easily be installed in a repeating pattern. One potential repeating pattern is shown which makes effective use of the pieces in Type B Patio Packs (some sawing required).
Type B Patio Packs cover a total area of 144 square feet.
Packaging Details
| Size | Quantity | Square Feet |
|---|---|---|
| 12" x 12" | 10 | 10 |
| 12" x 24" | 11 | 22 |
| 24" x 24" | 13 | 52 |
| 24" x 36" | 10 | 60 |
Total Area: 144 Square Feet |
||
Patio Pack Type C

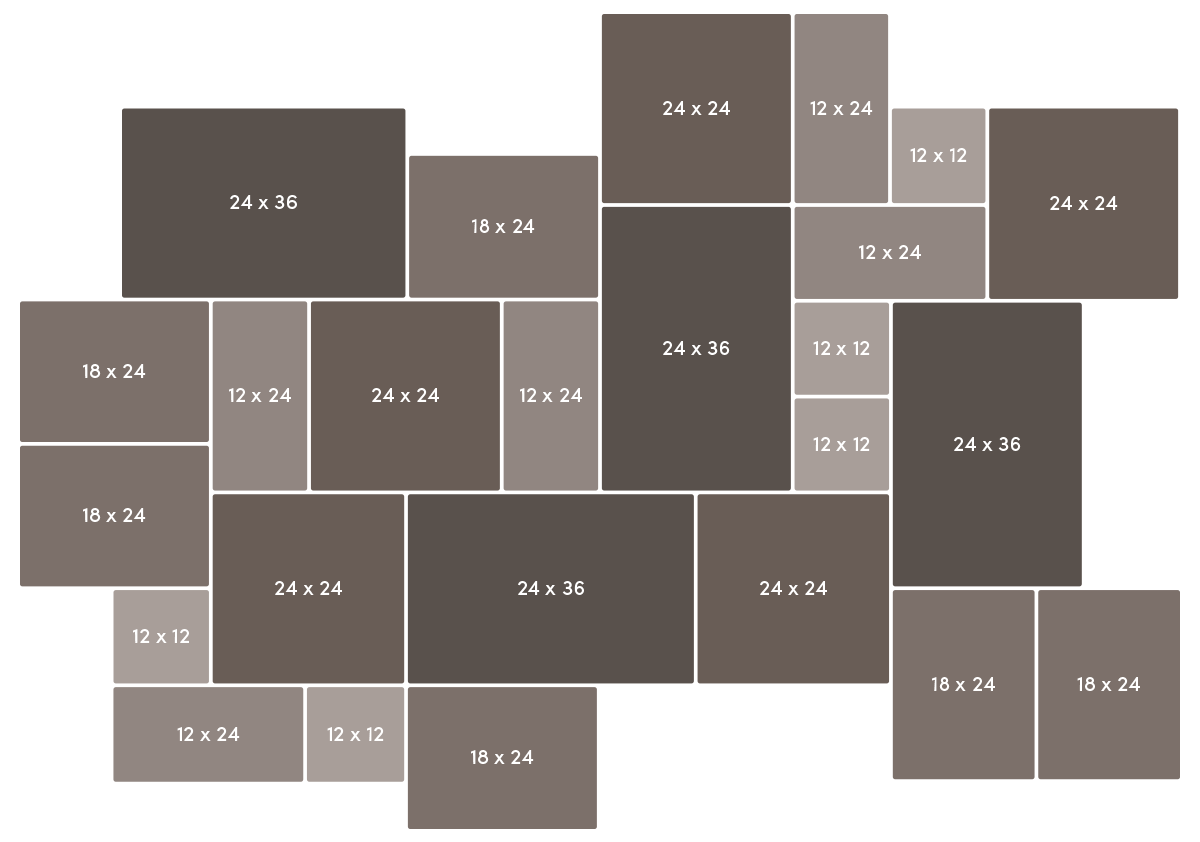

Type C Patio Packs can be installed in a "random" fashion in which there is no repeating pattern,
or they can easily be installed in a repeating pattern. One potential repeating pattern is shown which makes effective use of
the pieces in Type C Patio Packs.
Type C Patio Packs cover a total area of 160 square feet.
Packaging Details
| Size | Quantity | Square Feet |
|---|---|---|
| 12" x 12" | 10 | 10 |
| 12" x 24" | 10 | 20 |
| 18" x 24" | 12 | 36 |
| 24" x 24" | 10 | 40 |
| 24" x 36" | 9 | 54 |
Total Area: 160 Square Feet |
||
